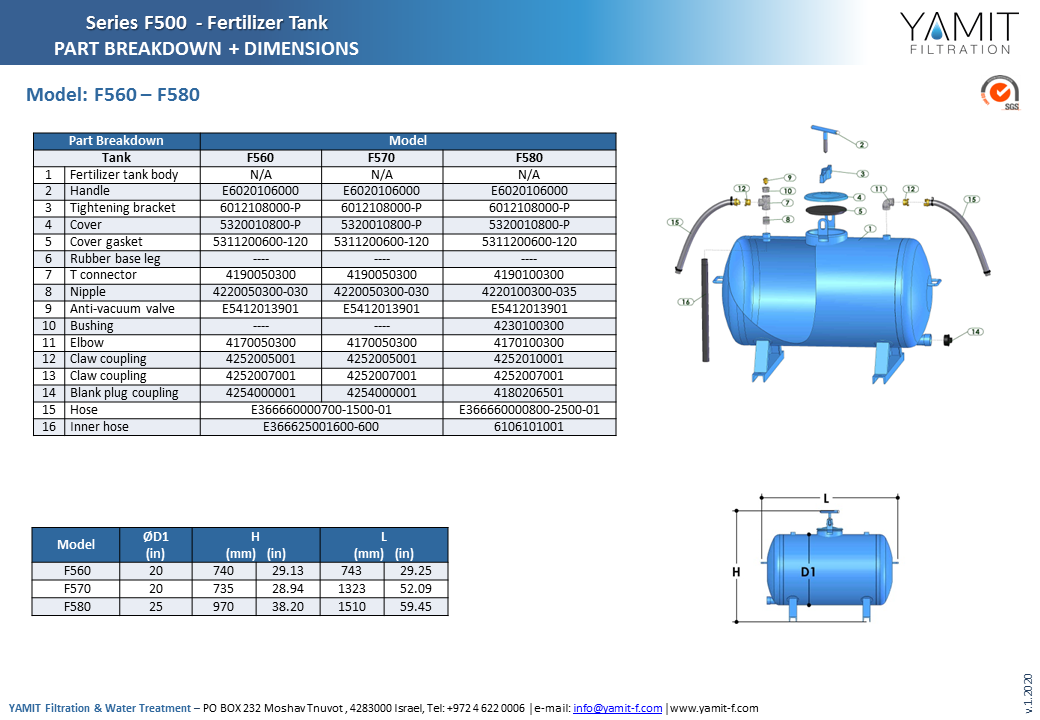

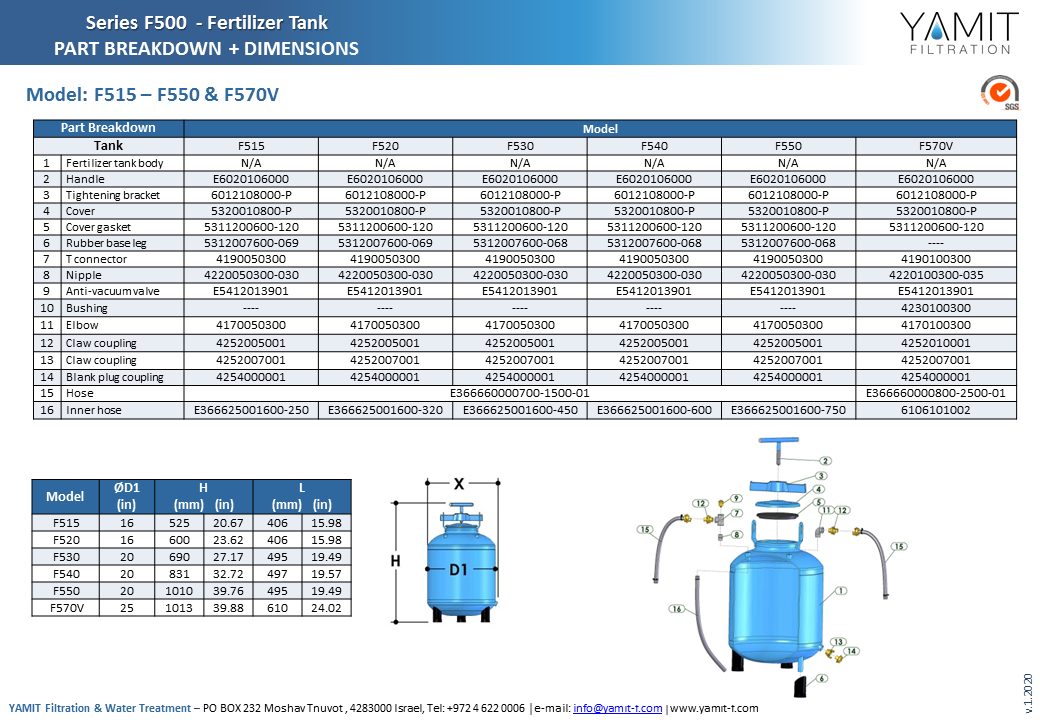

IPB & Drawing

Media

F-500 Fertilizer Tank

Applications: fertilizer tanks for use in agricultural applications.

Standard Characteristics:

  • Body of strainer and connections: Carbon Steel ST37.2
  • Pre-treatment: sand blasting up to Sa 2.5 grade
  • Exterior & Interior coating: electrostatic oven baked polyester-epoxy powder coating with a

        thickness of 150-200 micron

  • Connections: quick connection
  • Available tank volumes: 20, 30, 60, 90, 120, 220 liters
  • Installation: horizontal or vertical
  • Maximum operating working pressure : up to 8 bar (116 psi).
  • Fertilizer tanks require no external energy source to function, other than a pressure differential across the inlet and outlet.
  • The oversized pouring mouth reduces the chance of wasted fertilizer during tank filling.
  • Flexible and durable rubber joint, highly resistant to corrosion from chemicals used in agriculture.

Operation:

The fertilizer tanks are simple to use and maintain. A pressure differential between the inlet and outlet connections, creates flow into the tank, displacing chemical from the tank via the outlet and into the mains.
