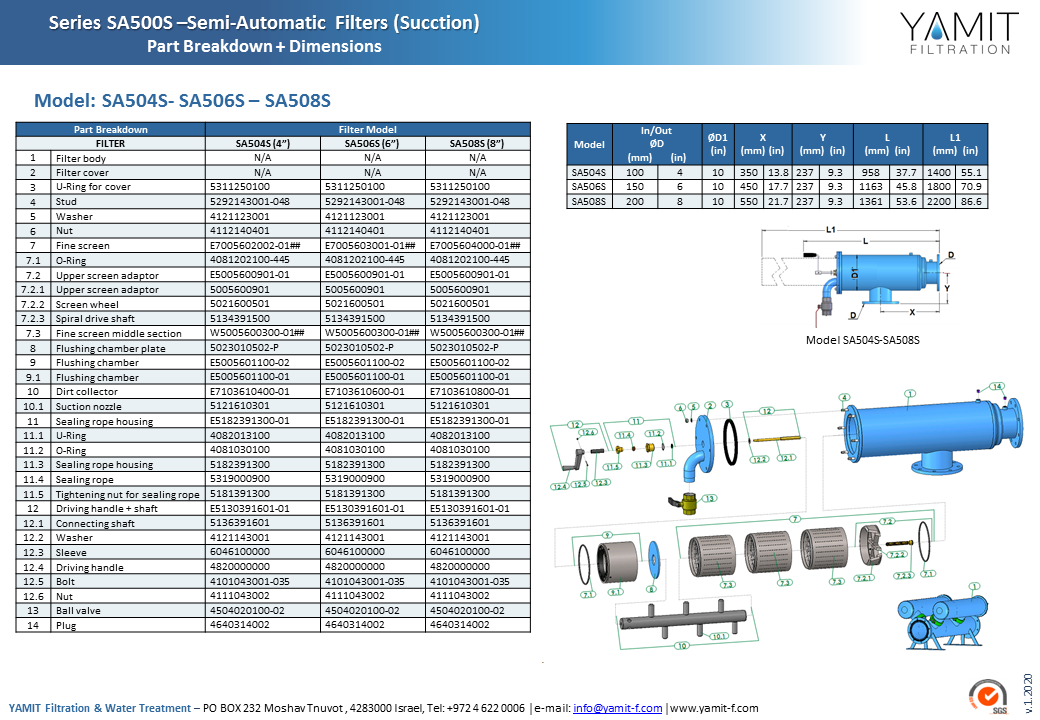

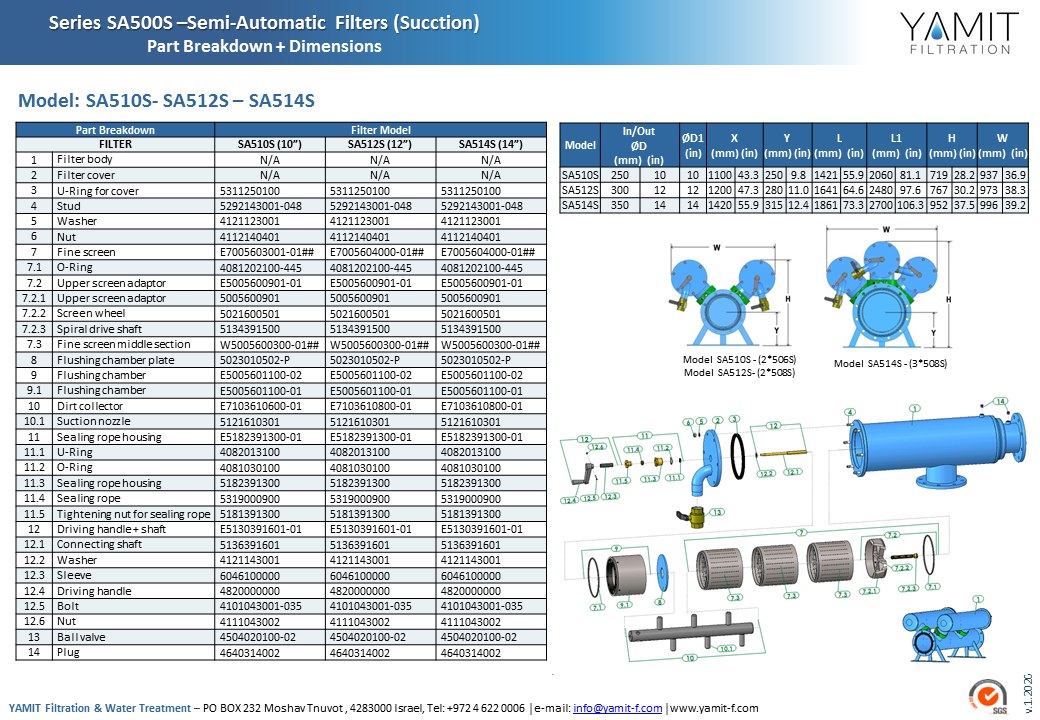

Parts Breakdown

Media

SA-500S Semi-Automatic Suction Scanner Filters

Applications: Semi –automatic suction filters

Standard Characteristics:

  • Filter element: – Stainless Steel screen AISI 316, supported by a PVC cylinder
  • Available filtration: from 120 micron
  • Filter housing material of construction: Carbon Steel ST37.2
  • Pre-treatment: sand blasting up to Sa 2.5 grade
  • Exterior & Interior coating: electrostatic oven baked polyester-epoxy powder coating with a thickness of 150-200 micron
  • Connections: Victualic and Flange
  • Maximum recommended working pressure: up to 10 bar (145 psi).
  • Minimum operating working pressure during flushing: 1 bar (14.5 psi)
  • Equipped with pressure gauge which indicates the pressure difference of 5 m
  • Clean screen pressure loss: up to 0.1 bar (1.45psi)



Operation:

Water flows through the inlet along and through the cylindrical screen trapping the solids on the screen.
The filter can be manually cleaned while still pressurized and without removing the screen. The operator cleans the screen by opening the flush valve and turning the handle, fully up and the back down. As a result the suction nozzles traverse the entire screen removing trapped debris. The whole process takes a few seconds.
